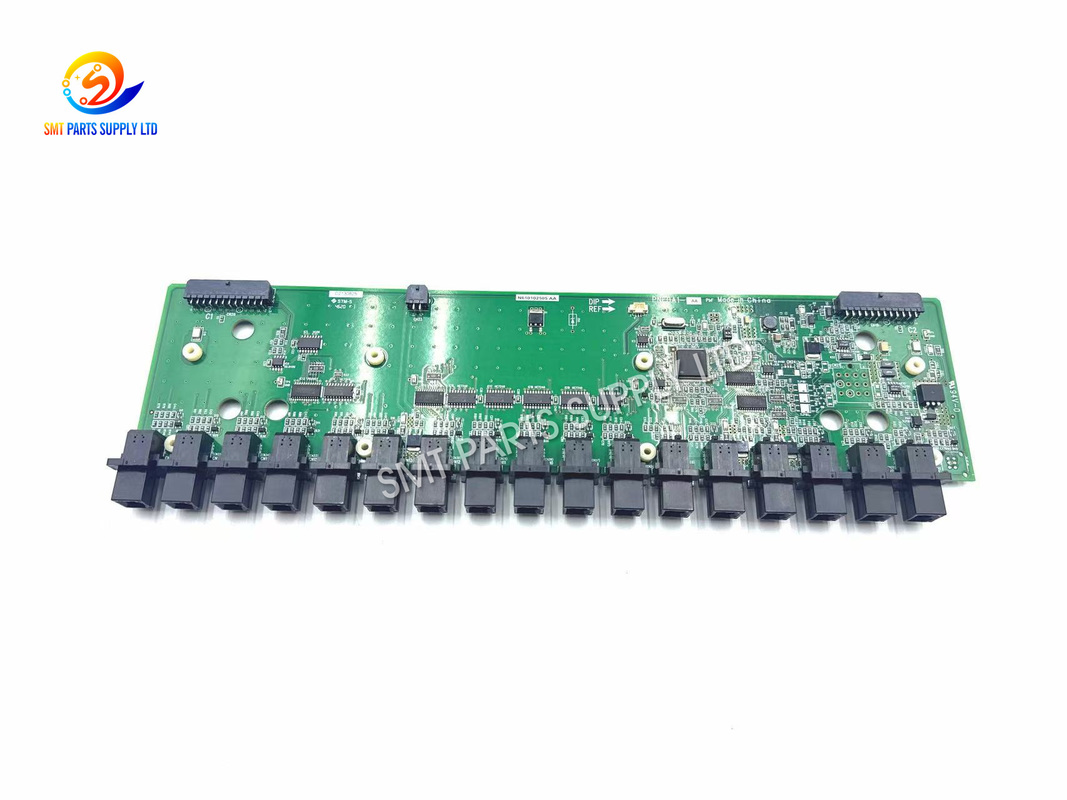

SMT Panasonic NPM Machine Feeder cart PCB board PNF0A1-AA N610102505AA

SMT Machine PCB Maintenance and Repair Manual

Professional Service by SMT PARTS SUPPLY LTD

At SMT PARTS SUPPLY LTD, we understand that the printed circuit board (PCB) is the core of every SMT (Surface Mount Technology) machine. It serves as the control center, connecting and regulating all major electrical functions within your pick-and-place equipment. When a PCB fails, even partially, it can cause serious downtime, placement inaccuracy, or total production shutdown.

To help our customers maintain smooth and reliable SMT operations, we provide a complete PCB maintenance and repair service — combining technical expertise, advanced diagnostic tools, and years of field experience. Our goal is to extend the life of your equipment, reduce unnecessary costs, and ensure consistent production quality.

1. Why PCB Maintenance is Essential

Regular PCB maintenance is not just about cleaning or repair — it’s a preventive strategy that protects your entire SMT production line. Common PCB problems include:

• Dust accumulation causing signal interference or overheating.

• Oxidized connectors reducing conductivity.

• Damaged ICs or capacitors from power surges or excessive heat.

• Aging solder joints causing intermittent faults.

Over time, these issues can lead to unstable operation or machine stoppage. At SMT PARTS SUPPLY LTD, our preventive maintenance program focuses on early detection and correction — minimizing downtime, improving placement precision, and keeping your SMT line in top condition.

2. Comprehensive Maintenance Procedure

Our maintenance service follows an industry-standard and detail-oriented process, ensuring every PCB is inspected, cleaned, and tested with care.

Step 1: Visual and Structural Inspection
Our engineers carefully examine each board under magnification to identify cracks, burns, corrosion, or deformation caused by heat or humidity.

Step 2: Deep Cleaning
We use professional anti-static ultrasonic cleaning machines and ESD-safe detergents to remove flux residue, oil, and dust. This process improves electrical stability and prevents heat buildup.

Step 3: Electrical Testing
Using precision testing tools, we check voltage, current, and signal integrity on each PCB layer. ICs, resistors, capacitors, and transistors are tested to ensure correct functionality.

Step 4: Solder Joint and Connector Inspection
Weak solder joints or oxidized pins are re-soldered using lead-free, high-quality solder materials. Connectors are cleaned, re-tinned, or replaced if necessary.

Step 5: Firmware and Parameter Verification
We verify firmware versions, update if required, and ensure all communication parameters are configured correctly for stable machine operation.

Step 6: Functional Simulation Test
Each PCB undergoes a functional test under simulated working conditions to ensure it performs flawlessly before being reinstalled in the machine.

3. Advanced PCB Repair Services

In addition to maintenance, we specialize in component-level PCB repair for all major SMT brands, including Yamaha, Panasonic, Fuji, Juki, Samsung, and ASM.

Our repair services include:

• Damaged component identification and precise replacement

• Circuit trace repair using micro-soldering techniques

• Reflow and reballing of BGA and QFP components

• Power supply module repair and reconfiguration

• Communication signal restoration and calibration

• Preventive reinforcement of high-stress areas

All repaired PCBs are tested on dedicated test benches and validated under production-level load conditions.

4. Quality Assurance and Testing

Every PCB serviced by SMT PARTS SUPPLY LTD undergoes multiple rounds of quality control:

• Visual inspection under 10x magnification

• Electrical continuity verification

• ESD safety verification

• Full functional test under operating conditions

• Final inspection by senior engineers before shipment

We only use genuine replacement parts and ESD-protected equipment to ensure the highest level of reliability and safety.

5. Technical Expertise and Engineering Team

Since our founding in 2007, SMT PARTS SUPPLY LTD has built a team of highly experienced SMT engineers with an average of over 10 years in the field. Our technicians are trained across multiple SMT platforms, and can quickly diagnose both hardware and software-related PCB problems.
Our engineering capabilities include:

• Schematic analysis and circuit simulation

• Firmware programming and reconfiguration

• SMT machine calibration and alignment

• On-site technical support and remote consultation

We are proud to support customers in Asia, Europe, and North America, providing consistent service quality and fast turnaround times.

6. Benefits of Working with SMT PARTS SUPPLY LTD

• Professional Expertise: Backed by decades of experience and in-depth technical knowledge.

• High Efficiency: Quick diagnostics and fast repair turnaround to reduce downtime.

• Reliable Quality: Strict testing standards ensure long-term stability.

• Global Supply Network: Access to a wide inventory of genuine SMT spare parts.

• Customer-Centered Support: Customized maintenance programs and responsive after-sales service.

Our philosophy is simple — Keep your SMT production line running smoothly, efficiently, and cost-effectively.

7. Contact Us

If you need professional SMT PCB maintenance, repair, or replacement services, our technical support team is ready to assist.
